Sicherheitsnetz Typ V – VISOR-V
Sicherheitsnetz EN-1263-1 Typ V

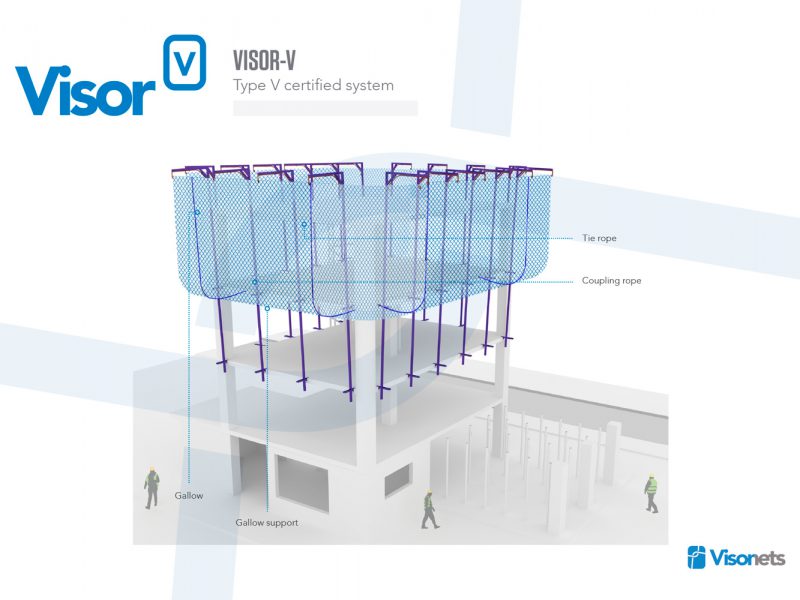

Sicherheitsnetz mit Randseil an einer Galgenstütze angebracht.
Eigenschaften
System zum Stoppen des Sturzes von Personen und Gegenständen in einer maximal zulässigen Höhe von 6 Metern, empfohlen bei 3 Metern.
Komponenten
Sicherheitsnetz EN-1263 VA2Q100, VA2Q80 oder VB1Q60: aus hochfestem Nylon / Polyamid oder Polypropylen.
Galgenstütze: Element aus Baustahl zur Unterstützung des Sicherheitsnetzes EN-1263.1.
Ankerung von der Galgenstütze: Die Galgenstützen werden am Rand der Betonplatte mit Wellstahlstangen verankert, die als „Omegas“ bezeichnet werden und einen Durchmesser von 12 mm oder ½ Zoll haben.
Netzverankerung: Das Netz Typ V wird an der Seite der Betonplatte durch Wellstahlkonstruktionen mit den Namen "U" von 6 mm Durchmesser oder 3/8 Zoll verankert, die ebenfalls auf der Baustelle abgebildet sind.
Befestigungsseil: Zertifiziert nach der Norm EN-1263.1 Typ G (Mindestzugfestigkeit 20 kN), um das Netz anzuheben und an der Galgenstütze zu verankern.
Kupplungsseil: Zertifiziert nach der Norm EN-1263.1 Typ O (Mindestzugfestigkeit 7,5 kN) zum Zusammenfügen der Netzplatten.
Netzausführungen
Knotenloses Polypropylen
Eine Schicht – Knotenlos Polypropylen
Zwei Schichten – Knotenlos Polypropylen
Drei Schichten – Knotenlos Polypropylen
Technische Daten
Knotless Safety Net VA2D100 PP
| Raw material mesh | 100% high-tenacity polypropylene |
|---|---|
| Type of net | Knotless |
| Energy of the net | A2 |
| Configuration of the mesh | Diamond “D” |
| Size of the mesh | 100 mm |
| Diameter of the mesh rope | 5 mm |
| Minimum breaking force of the mesh rope | 2.2 kN |
| Breaking energy of the net | 4.91 kJ |
| Raw material border rope | 100% polysteel |
| Breaking strength border rope | 20 kN (rope type P according to EN-1263.1:2014) |
| Diameter of the border rope | 10 mm |
| Net dimensions | Appear on the label of the net |
| Manufacturing date of the net | Appears on the label of the net |
| UV treatment | Yes (300 klY) |
| Colour | Green / Blue / Red / Yellow |
| Weight | 210 gr/m2 |
Knotless Safety Net VA2Q100 PP
| Raw material mesh | 100% high-tenacity polypropylene |
|---|---|
| Type of net | Knotless |
| Energy of the net | A2 |
| Configuration of the mesh | Square “Q” |
| Size of the mesh | 100 mm |
| Diameter of the mesh rope | 5 mm |
| Minimum breaking force of the mesh rope | 2.2 kN |
| Breaking energy of the net | 4.91 kJ |
| Raw material border rope | 100% polysteel |
| Breaking strength border rope | 20 kN (rope type P according to EN-1263.1:2014) |
| Diameter of the border rope | 10 mm |
| Net dimensions | Appear on the label of the net |
| Manufacturing date of the net | Appears on the label of the net |
| UV treatment | Yes (300 klY) |
| Colour | Green / Blue / Red / Yellow |
| Weight | 210 gr/m2 |
Knotted Safety Net VA2D100 PP
| Raw material mesh | 100% high-tenacity polypropylene |
|---|---|
| Type of net | Knotted |
| Energy of the net | A2 |
| Configuration of the mesh | Diamond “D” |
| Size of the mesh | 100 mm |
| Diameter of the mesh rope | 5 mm |
| Minimum breaking force of the mesh rope | 2.2 kN |
| Breaking energy of the net | 4.91 kJ |
| Raw material border rope | 100% polysteel |
| Breaking strength border rope | 20 kN (rope type P according to EN-1263.1:2014) |
| Diameter of the border rope | 10 mm |
| Net dimensions | Appear on the label of the net |
| Manufacturing date of the net | Appears on the label of the net |
| UV treatment | Yes (300 klY) |
| Colour | Green / Blue / Red / Yellow |
| Weight | 210 gr/m2 |
Gallow type support
| Section | 50x50 | 60x60 | 70x70 |
|---|---|---|---|
| Dimensions (edge) | a = 50 mm | a = 60 mm | a = 70 mm |
| Wall thickness | e = 3 mm | e = 3 mm | e = 3 mm |
| External radius | r = 8 mm | r = 8 mm | r = 8 mm |
| Perimeter | u = 187 mm | u = 227 mm | u = 277 mm |
| Cross-sectional area | A = 5.33 cm2 | A = 6.53 cm2 | A = 7.73 cm2 |
| Static moment of half section, with regard to the X or Y axis | S = 4.62 cm3 | S = 6.89 cm3 | S = 9.60 cm3 |
| Inertia moment of the section, with regard to the X or Y axis | I = 19.00 cm4 | I = 34.40 cm4 | I = 56.60 cm4 |
| Resistant module of the section, with regard to the X or Y axis | W = 7.59 cm4 | W = 11.50 cm4 | W = 16.20 cm4 |
| Turning radius of the section, with regard to the X or Y axis | i = 1.89 cm | i = 2.30 cm | i = 2.71 cm |
| Module of torsion of the section | It = 32.00 cm4 | It = 57.10 cm4 | It = 92.60 cm4 |
| Weight | p = 4.18 kp/m | p = 5.13 kp/m | p = 6.07 kp/m |
Tie rope 20 kN
| Raw material | 100% high-tenacity polypropylene |
|---|---|
| Breaking strengh | 20 kN (braided rope type G without loops / bights) |
| Diameter | 12 mm |
| Coil / bobbin length | 100 m |
| UV treatment | Yes (300 klY) |
| Colour | White |
| Weight | 48.11 gr/m |
Coupling Rope 7.5kN
| Raw material | 100% high-tenacity polypropylene |
|---|---|
| Breaking strengh | 7.5 kN (braided rope type O without loops / bights) |
| Diameter | 6 mm |
| Coil / bobbin length | 100 m |
| UV treatment | Yes (300 klY) |
| Colour | White |
| Weight | 11.60 gr/ml |
Downloads
Exklusive Inhalte:
DOSSIER for V Type System Safety Nets
0 file(s) 4 MB
INSTALLATION GUIDE for V Type System Safety Nets
0 file(s) 705 KB
TECHNICAL DATASHEET Gallow Type Support
0 file(s) 85 KB
TECHNICAL DATASHEET Tie Rope 20 kN
0 file(s) 78 KB
TECHNICAL DATASHEET Coupling Rope 7,5 kN
0 file(s) 81 KB
VISOR NETS bietet seinen Kunden ein Layout oder eine Anordnung von Netzsystemen Typ V.
